0.001mm Precision Floor Style PCB Separator PCB Router Machine
Customers feedback

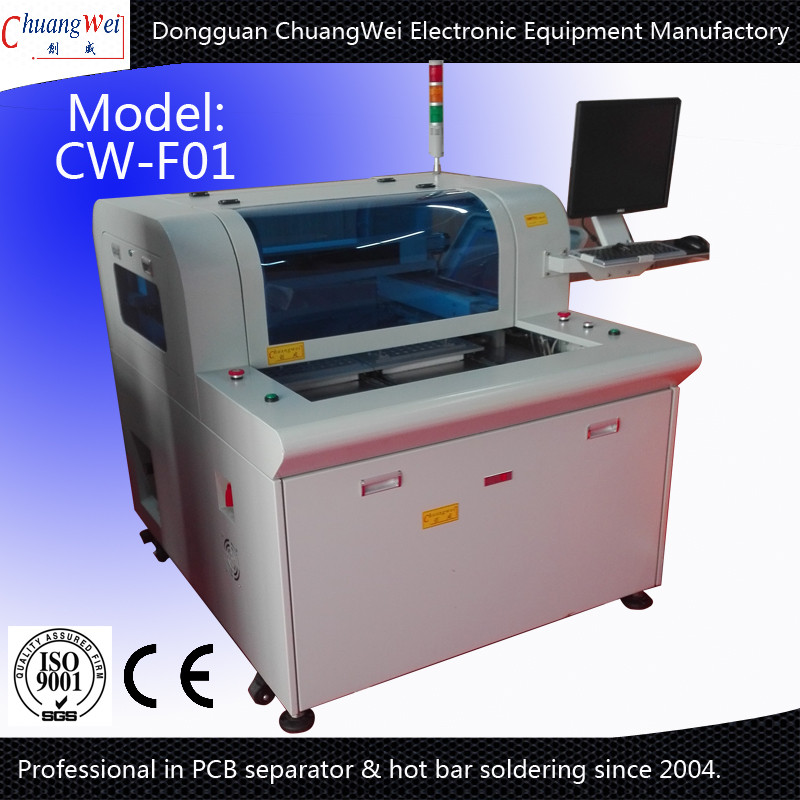

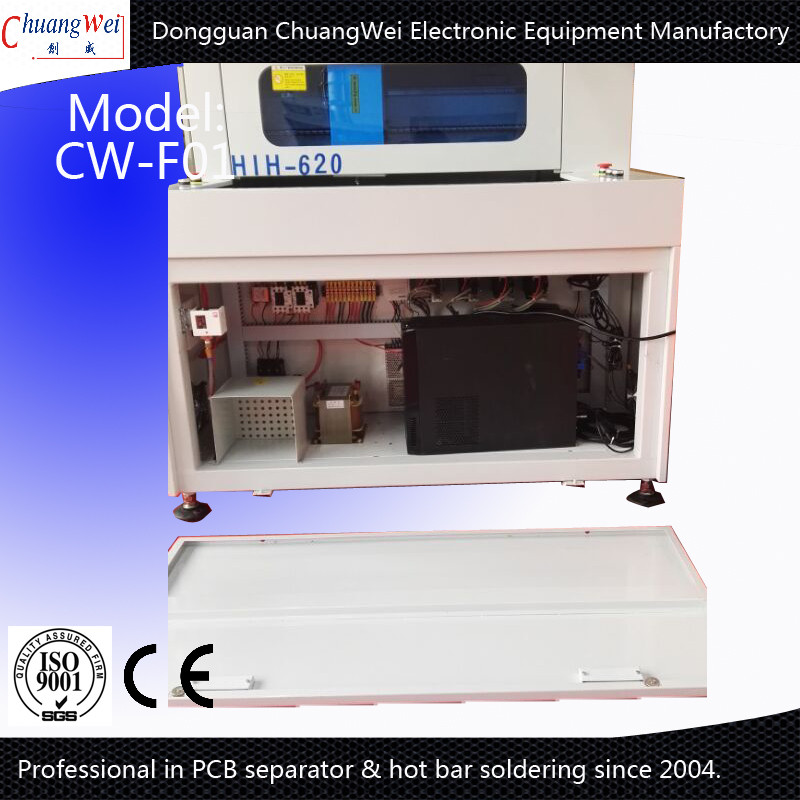

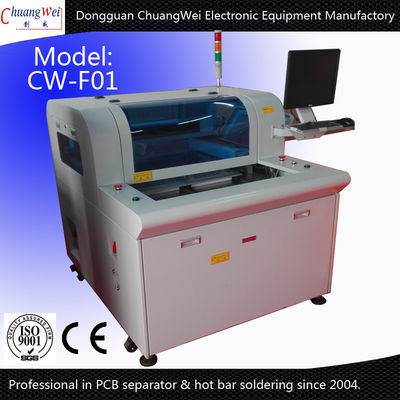

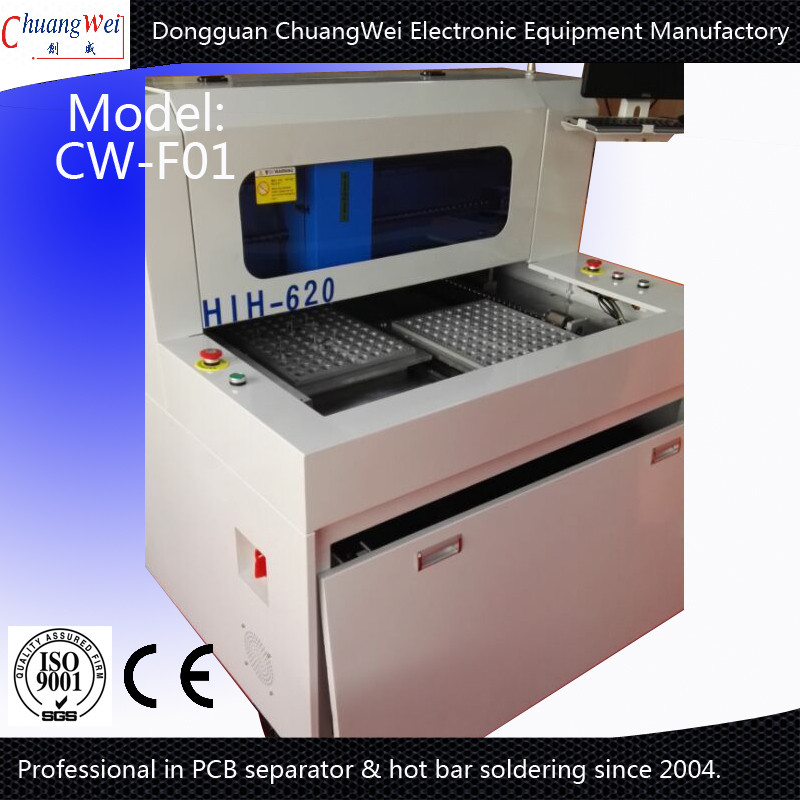

CW-F01 profile:
CW-F01 automatic visual cutting machine is the latest designed high-tech product of a new generation, with (Machine Vision)automatic visual identification and correction function, applied by high-accuracy Panasonic servo drive system to realize quick and precise positioning, rendering accuracy at 0.001mm maximum to ensure the high quality of the cutting and high productivity.
Specification:
Performance Parameters:
|
Overall |
|
|
Dimensions(W*D*H) |
1220mm*1450mm*1420mm |
|
Weight |
550KG |
|
Height offset |
60~110mm |
|
Manipulator |
|
|
Motor type |
JiaBao series |
|
Positioning repeatability |
0.001mm |
|
Axis working area(max) |
680mm*360mm*50mm |
|
Work station |
|
|
Work station |
standard,specialization |
|
PCB loading/unloading |
manual |
|
PCB size (max) |
322mm*322mm |
|
PCB thick (max) |
5mm |
|
Fixturing |
|
|
Rigidity fixturing |
standard |
|
Fixturing fixation |
machinery |
|
Spindle Motor |
|
|
Power |
400W |
|
Spindle |
50000rpm/min |
|
Protect |
self/wind cooling |
|
Change cutter |
Specialization |
|
Routing capability |
|
|
Cutting speed(max.) |
100mm/s |
|
Driving speed(max.) |
3000mm/s |
|
Precision of cutting |
0.01mm |
|
Vacuum System |
|
|
Vacuum power |
2.2KW AC 380V |
|
Vacuum plumb |
|
|
Utilities |
|
|
Power |
2.2KW AC380V |
|
Air supply |
2~5KG/cm2 |
Hardware:
SPINDLE Morning Star spindle and inverter
|
CCD |
Sony 520 line industrial cameras |
|
LENS |
Computar EX2C |
|
Screw |
TBI Precision ground ball screw imports |
|
Guide |
HIWIN widening Imported linear guide rail |
|
MOTOR |
JiaBao LCF Series |
|
I/O CONTRONL CARD |
HFC PCI-9074 |
|
DRIVER CONTRONL CARD |
HFC PCI-9074 |
|
I/O CARD |
PCI-9074-64pcs/-38pcs |
|
Static cleanup |
STATIC-ST401A Series |
|
Computer |
RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G |
|
Machine interface |
AOC LCD17",Logitech mouse |
Software:
|
Control system |
Windows XP Professional (Service3,v.3244) |
|
Operation GUI |
Chinese Windows XP |
|
Program edit |
Inline |
|
Vision system |
CCD AOTU offset |
|
Control system |
F 1.0.2 version |
