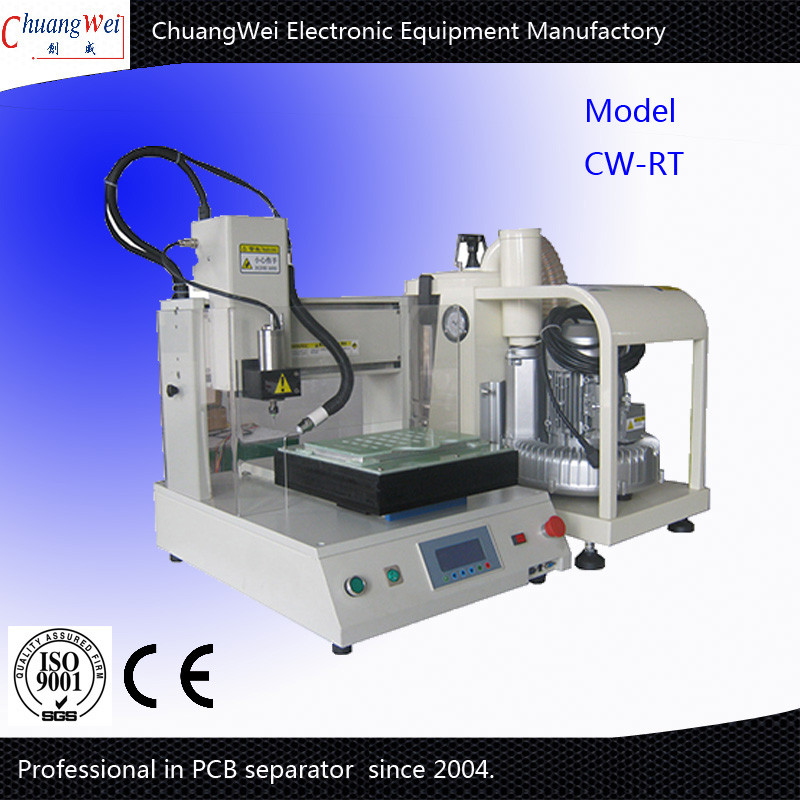

Bench Top Automatic PCB Router With Customize Robust Frame And Vaccum Cleaner Feature:
1. Friendly interface make programming very easy.
2. Boards are separated without bending or breaking.
3. Euipped with quality ,air cooling long service life routing sprindle.
4. With vaccum cleaner provides a clean and low noisy work enviroment.
5. Moving speed can reach 500mm/s, routing speed can reach 100mm/s, geatly improve producticon efficiency.
6. Bench-top Automatic Router adopt x,y,z step motor and driving system ,ensure machine run smooth and precisely.routing accuracy less than 0.05mm.
Specification:
| Motor drive system | Servo / stepper motor |
| Spindle speed | 50000r/s |
| Cutting performance | 500mm/s |
| Drive system repeatability | ±0.02mm |
| Cutting speed | Max 100mm/S(depends on PCB material and cutting quality) |
| Resolution | ±0.01mm |
| Configuration | X,Y,Z 3 axis |
| Repeatability | <0.1mm |
| PCB positioning | fixture |
| Load and unload way | Manually |
| PCB thickness | 0.4mm-4mm |
| Working area | 400*400mm(could be customized made) |
| Spindle motor power | 0.5KW |
| Spindle motor speed | 50000r/m |
| Spindle motor cooling | Air-cooled |
| Machine dimension | 650*550*615mm |
| Weight | 73KG |
Details:
Bench-top Automatic Router adopt x,y,z step motor and driving system ,ensure machine run smooth and precisely.routing accuracy less than 0.05mm.
X,Y,Z axis step driving system.

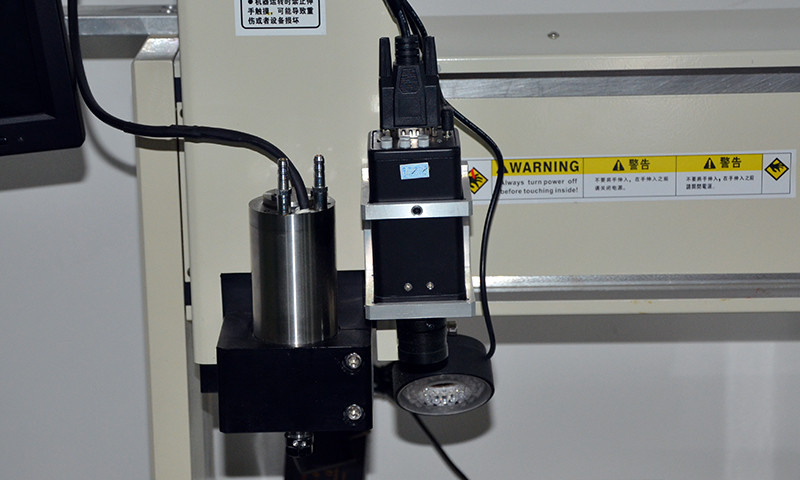

Euipped with quality ,air cooling long service life routing sprindle made in Taiwan.

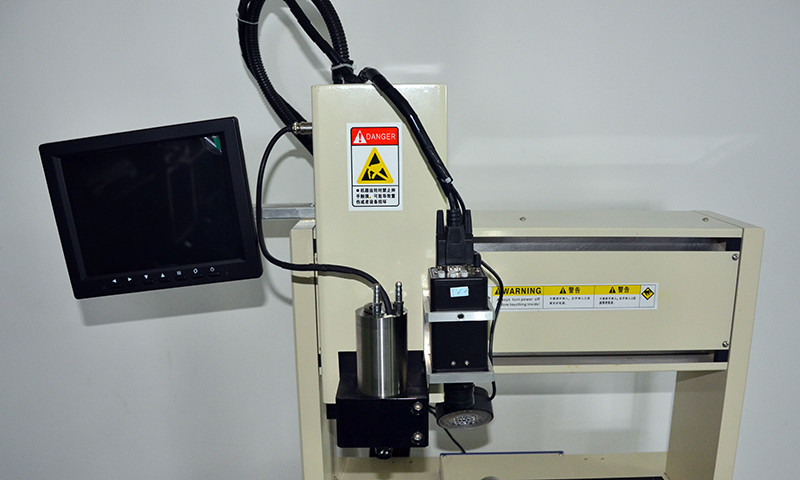

Optional CCD and monitor make programming easier.

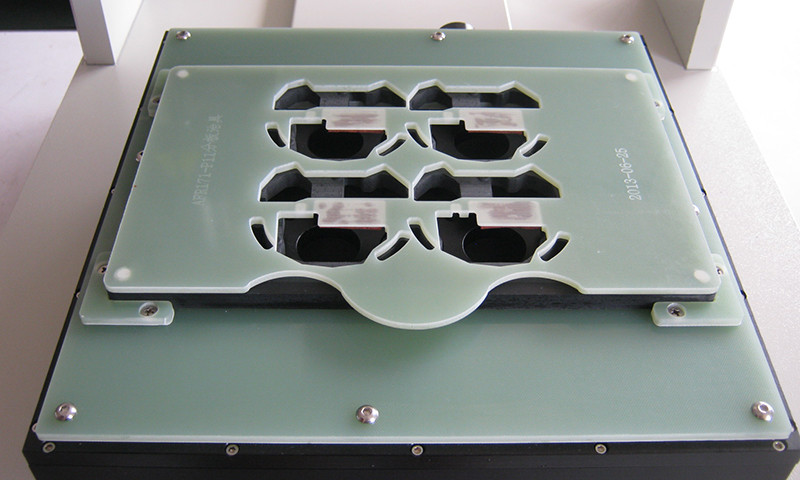

Optional fixture according to customer's requirement.
our advantage: cnc router machine cnc router machine cnc router machine cnc router machine
1. We offer 24 hours technical support by call, email.
2. Our technician can give you remote guide online(Skype or MSN) if you have any question
3. We can record videos of operating the laser machine.
4. Free training course in our factory.
5. Machine will be adjusted before it is delivered , operation disk/CD was included
CW-TR Bench-top Automatic PCB Router Include
cwtr Bench-top Automatic PCB Router with:
◎ Vaccum cleaner
◎ Routing sprindle
◎ 3 aix step motor and driving system
◎ Milling cutter 10pcs
◎ 1 year parts warranty
Optional configuration:
◎ Customized fixture
◎ Auxiliary programming CCD and monitor
