Double Station Automatic Depaneling PCB Router Machine 220V 4.2KW

1 insieme
MOQ
Negotiable
prezzo
Double Station Automatic Depaneling PCB Router Machine 220V 4.2KW
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Modello: CW-F01-S
Posto di lavoro: 2
Potere: 220V, 4.2KW
Spessore del PWB: 0.5-3.5MM
Area di lavoro: 320*320mm (norma)
Peso a macchina: 650Kgs
Garanzia: 1 anno
NOME: Router automatico del PWB
Evidenziare:

pcb depaneling router

,

printed circuit board router

Informazioni di base
Luogo di origine: Dongguang Cina
Marca: chuangwei
Certificazione: CE ISO
Numero di modello: CW-F01-S
Termini di pagamento e spedizione
Imballaggi particolari: ogni insieme è imballato in contenitori di cartone
Tempi di consegna: i 1-3 giorni dopo che il pagamento conferma
Termini di pagamento: T/T, L/C, Paypal
Capacità di alimentazione: 300 insiemi al mese
Descrizione di prodotto

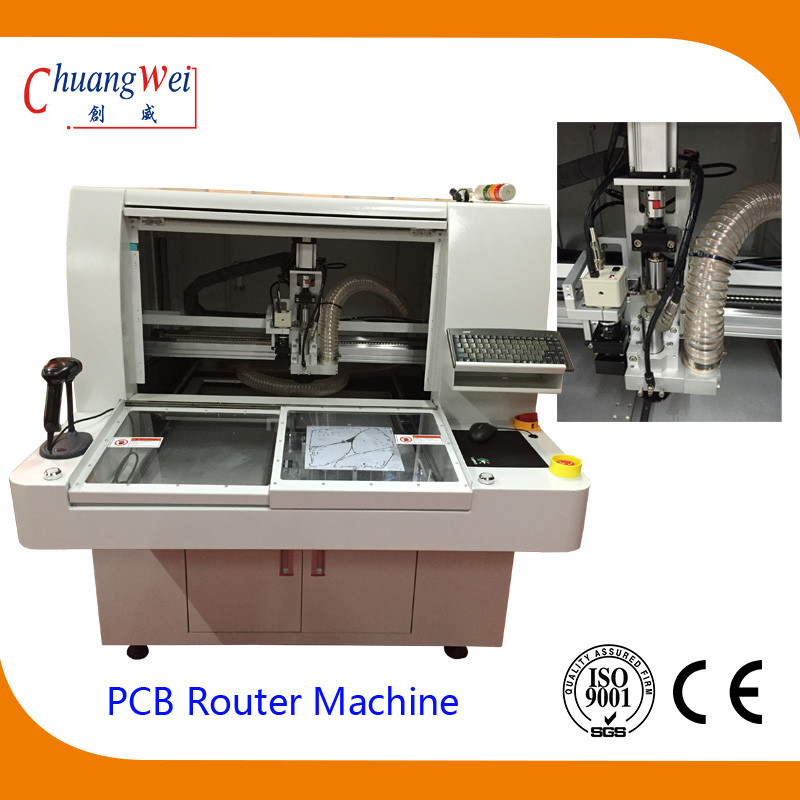

Double station Automatic PCB Router Machine for The Best Depaneling Solution



Specification:

Model CW-F01-S
Standard working area 320*320mm(standard)
Power 220V, 4.2KW
Manipulator Repeatability ±0.02mm
Resolution ±0.01mm
Board Positioning Dual workstation with nest fixture or pin fixture
Panel Location Located by tooling holes or edges of PCB
Loading Manual
Unloading Manual
Panel Size 320*320mm(standard)
Panel Thickness 0.5-3.5mm
Spindle motor 0.5kW Morning Star Spindle
Tool Change Manual
Dust filtration system 3KW Vacuum Cleaner
Vision system High resolution CCD video camera
Programming Vision assisted point to point manual teaching
Editing Function Dry run vision assisted / test run mode
Machine weight 500kgs
Machine dimension 113*140*108cm





Feature:

  • This PCB Separator adopt x,y,z servo motor and driving system and ball screw ,linear guide rail ,ensure machine run smooth and precisely.moving accuracy less than 0.01mm, routing accuracy less then 0.05mm.
  • Rotary double work station design makes continuous running ,greatly improve production efficiency .
  • Machine is equipped with high resolution CCD ,use direct teach programming method with cross cursor of CCD, very easy to operate , software can excute point ,line ,arc ,circle etc command to cut different shape of panelled board ,it has mark positioning function ,can automatically correct the coordinate offset when PCB position changed .
  • Industrial PC ,Windows system and full english self developed softeware makes programming and operating very easy
  • Euipped with quality ,air cooling long service life routing spindle .
  • External silence vaccum cleaner provide a clean and low noise work environment .
  • Milling cut can be used as 2 or 3 section , just set the parameter on sofeware , it has greatly prolonged milling cut' service life.
  • Equipped with anti static ionizing fan which can eliminate static and remove dust



Packaging:

Double Station Automatic Depaneling PCB Router Machine 220V 4.2KW 0  Double Station Automatic Depaneling PCB Router Machine 220V 4.2KW 1



Why choose us



1.Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support.


2.Mature technique & forerunner to process makes high quality machinery.


As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine


Our R&D team continuously upgrade the existing machines to meet the market development trend.


3.Effective customer service. pcb router machine


All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.


4.One year warranty for the machines except accessories. b router machine


Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.


Our mission:


Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success


Our Vision:


PCB industry to become the world's leading solution providers PCB separator. pcb router machine




Our sales network



Double Station Automatic Depaneling PCB Router Machine 220V 4.2KW 2



CE approval



Double Station Automatic Depaneling PCB Router Machine 220V 4.2KW 3





Our Partners



Double Station Automatic Depaneling PCB Router Machine 220V 4.2KW 4



Double Station Automatic Depaneling PCB Router Machine 220V 4.2KW 5



Double Station Automatic Depaneling PCB Router Machine 220V 4.2KW 6



Double Station Automatic Depaneling PCB Router Machine 220V 4.2KW 7



Double Station Automatic Depaneling PCB Router Machine 220V 4.2KW 8
